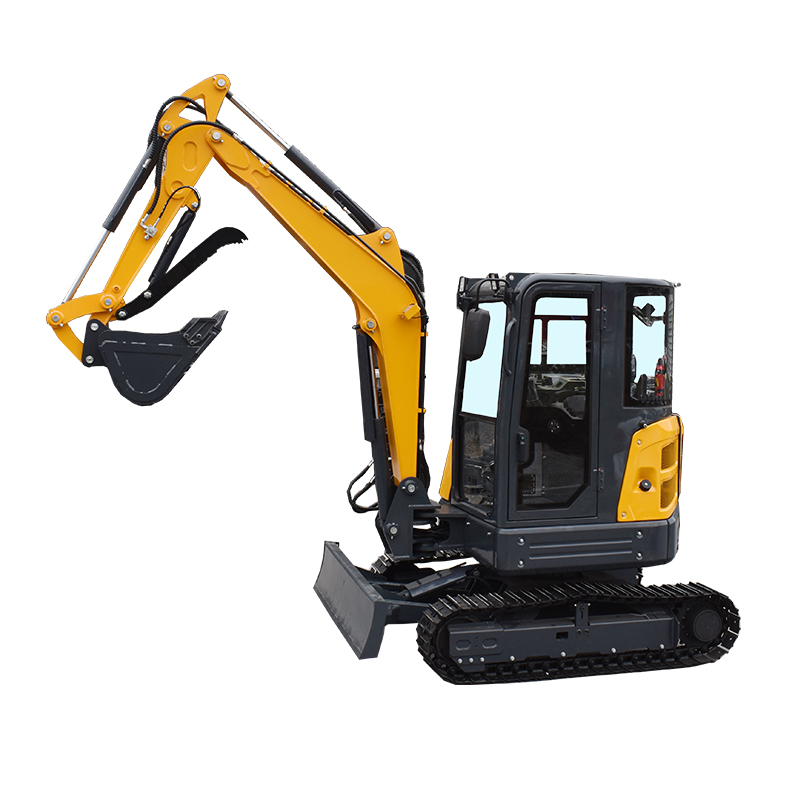

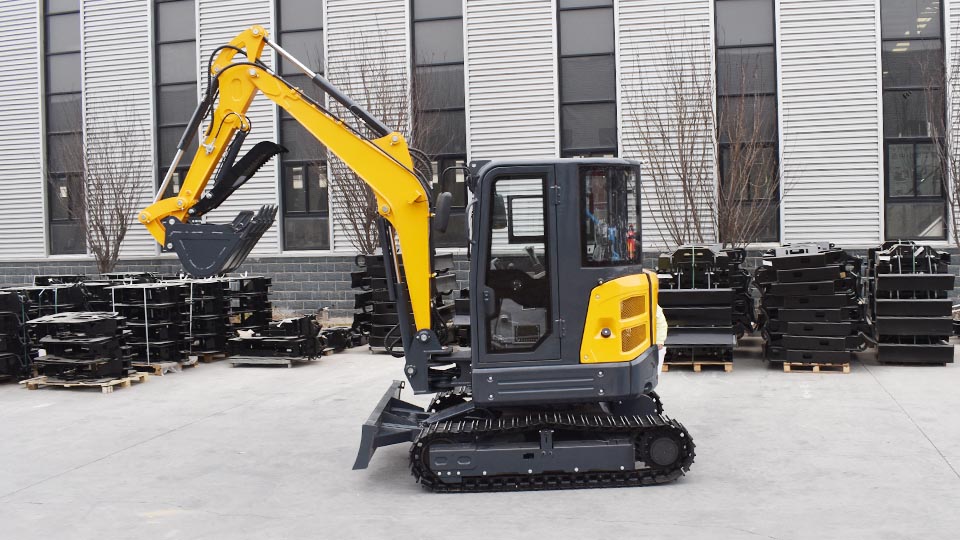

MY35-40 Mini Excavator: The Pinnacle of Compact Power and Versatility

The MY35-40 Mini Excavator represents the apex of compact excavation technology, engineered for professionals who demand uncompromising performance, versatility, and reliability.  This machine seamlessly blends power and precision, enabling operators to tackle a diverse range of projects in confined and challenging environments.  Designed with cutting-edge technology and robust construction, the MY35-40 sets a new standard for mini excavators, delivering exceptional productivity and efficiency.

Key Features:

High-Performance Engine and Hydraulic System: The MY35-40 is powered by a state-of-the-art, fuel-efficient engine that delivers exceptional power and torque. This engine is coupled with an advanced hydraulic system that provides smooth, precise control and responsive operation, maximizing digging force and minimizing cycle times.
Zero-Tail Swing and Compact Design: The zero-tail swing design ensures that the machine can rotate within its track width, allowing for safe and efficient operation in confined spaces and along walls. This feature, combined with the machine's compact design, makes it ideal for urban construction, residential projects, and interior demolition.
Robust and Durable Construction: The MY35-40 is built with high-strength steel and heavy-duty components, ensuring exceptional durability and longevity. The reinforced frame, undercarriage, and boom are designed to withstand the rigors of demanding job sites, minimizing downtime and maximizing uptime.
Ergonomic Operator Station: The spacious and comfortable operator station is designed with operator comfort and productivity in mind. Featuring intuitive controls, adjustable seating, excellent visibility, and optional climate control, the MY35-40 minimizes operator fatigue and maximizes efficiency.
Advanced Control System: The MY35-40 features an advanced control system that provides precise control over all machine functions. This system allows operators to fine-tune machine performance to match specific job requirements, maximizing productivity and efficiency.

Technical Specifications

Total lengthl	5029mm
Total widthl	1720mm
Upper widthl	1554mm
Total heightl	2580mm
Standard track shoe widthL	300mm
Minimum ground clearancel	319mm
Tail turnina radiusl	885mm
Track ground lengthl	1645mm
Track lengthl	2150mm
Bulldozer Ground heightl	393mm
Bulldozer digging depth	461mm
Maximum digging height	3376mm
Maximum digging depth	3106mm
Maximum digging distance	5175mm
Minimum radius of turn	2634mm
Max. Height @ Min. Rotation Radius	3716mm
Operating weight	3500kg
SuCKet capaCity	0.12m³
Rated power	18.5KW/2200rpm

Versatile Attachment Compatibility: The MY35-40 is compatible with a wide range of attachments, including buckets, breakers, augers, grapples, and more.  This versatility allows the machine to be adapted to a variety of tasks, maximizing its utility and return on investment.  The quick coupler system allows for fast and easy attachment changes.
Easy Maintenance and Serviceability: Designed for simplified maintenance, the MY35-40 features easily accessible service points, minimizing downtime and maximizing uptime.  Routine maintenance can be performed quickly and efficiently, reducing operating costs.
Rubber Tracks and Optional Steel Tracks: The rubber tracks provide excellent traction on a variety of surfaces, including asphalt, concrete, and soil, while minimizing ground damage.  Optional steel tracks are available for heavy-duty applications and challenging terrain.
Expandable Undercarriage (Optional): Some MY35-40 models may offer an expandable undercarriage, providing increased stability and versatility for challenging terrain and heavy lifting tasks.
Advanced Safety Features: The MY35-40 is equipped with a range of advanced safety features, including overload protection, emergency stop, rollover protection (ROPS), and falling object protection (FOPS), ensuring operator safety and minimizing the risk of accidents.

Applications:

Benefits:

Where the MY35-40 Shines

Construction: Foundation digging, site preparation, backfilling.
Utilities: Installing water/gas lines, trenching for cables.
Landscaping: Pond excavation, tree planting, grading.
Demolition: Concrete breaking, interior teardowns.
Agriculture: Digging irrigation channels, barn cleanup, post-hole drilling.

Call to Action:

Contact us today to learn more about the MY30 Mini Excavator and discover how it can enhance your productivity. Schedule a demo or request a quote. We are committed to providing you with the best solutions for your excavation needs.
