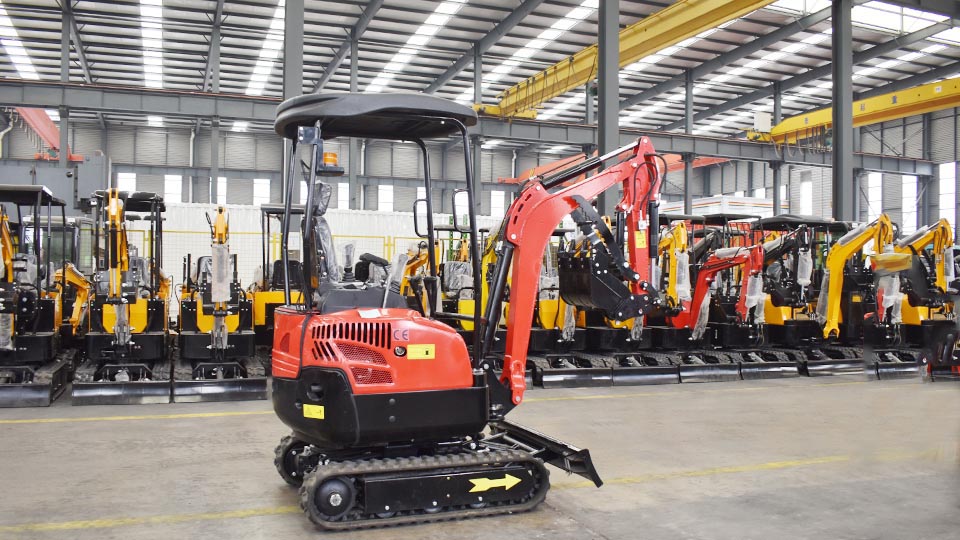

The undercarriage is the foundation of the compact excavator, providing stability and mobility. It's what allows the machine to traverse various terrains, from muddy job sites to paved streets. The main components of the undercarriage are the tracks, the idler and sprocket, and the rollers.

Tracks: The tracks are what the excavator moves on. Most compact excavators use rubber tracks, which are ideal for urban or residential work because they cause less damage to surfaces like asphalt and concrete. Steel tracks are also available for more demanding applications where puncture resistance and durability are critical, such as on rocky terrain or demolition sites. .

Sprocket and Idler: The sprocket is a large gear-like wheel at the rear of the undercarriage. It's driven by the machine's final drive motor, and its teeth engage with the tracks to propel the excavator forward or backward. The idler is a wheel at the front of the undercarriage that guides the track and maintains its tension.

Rollers: There are two types of rollers in the undercarriage: carrier rollers and track rollers. Carrier rollers are small wheels on top of the track that support its weight and prevent it from sagging. Track rollers are located on the bottom of the undercarriage and support the weight of the machine as it moves, distributing it evenly across the tracks.

The Powerhouse: The Engine and Hydraulic System

The engine is the heart of the excavator, providing the power to move the machine and operate its attachments. The hydraulic system is the brain, translating that power into the precise and powerful movements of the boom, arm, and bucket.

Engine: Compact excavators are typically powered by a diesel engine. These engines are chosen for their high torque output, fuel efficiency, and durability. The engine generates power, which is then transferred to the hydraulic pump.

Hydraulic Pump: This is one of the most critical components of the hydraulic system. The pump, which is powered by the engine, pressurizes the hydraulic fluid. This high-pressure fluid is what does all the work in the excavator.

Hydraulic Cylinders: These are the muscle of the machine. Hydraulic cylinders are used to extend and retract the boom, arm, and bucket, as well as to power other functions like the blade and swing mechanism. They are simple devices with a piston inside a cylinder. When pressurized hydraulic fluid is pumped into one end of the cylinder, it pushes the piston, causing it to extend. To retract the piston, the fluid is pumped into the other end.

Control Valves: The control valves are what allow the operator to direct the flow of hydraulic fluid to the different cylinders. The joysticks and pedals in the cab are connected to these valves, giving the operator precise control over each movement.

Hydraulic Reservoir: This is a tank that stores the hydraulic fluid. It also helps to cool the fluid and allows any air bubbles to escape.

The Operator’s Station: The Cab and Controls

The cab is where the operator controls the machine. Modern compact excavator cabs are designed for comfort, safety, and efficiency.

Operator's Seat: The seat is adjustable and often features air suspension to reduce vibration and operator fatigue. It's strategically placed to give the operator a clear view of the work area.

Joysticks and Pedals: These are the primary controls for the excavator's movements. Typically, two joysticks control the boom, arm, bucket, and swing, while foot pedals control the tracks and the hydraulic blade.

Instrument Panel: This panel displays critical information about the machine's operation, such as engine temperature, fuel level, hour meter, and warning lights.

Roll Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS): The cab itself is a critical safety component. It's built with a reinforced frame to protect the operator in the event of a rollover (ROPS) or if objects fall onto the cab (FOPS).

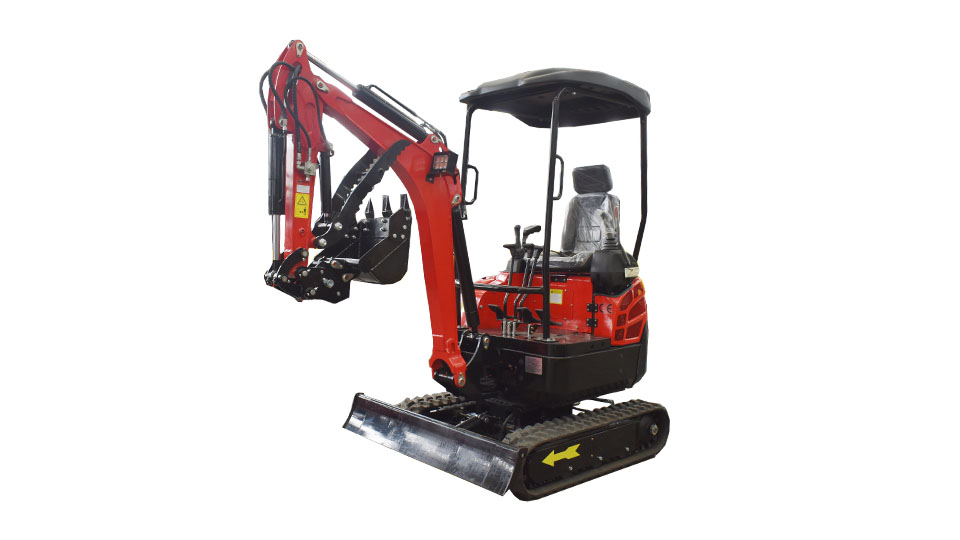

The Business End: The Boom, Arm, and Bucket

This is the front part of the excavator that performs the actual digging, lifting, and demolition work.

Boom: The boom is the large arm attached to the machine's body. It is the primary lever that allows the excavator to reach and lift. It's connected to the main body by a swing mechanism that allows the entire upper structure of the excavator to rotate 360 degrees.

Arm (or Dipper): The arm is attached to the end of the boom. It provides the second point of articulation and allows for more precise digging and placement of materials.

Bucket: The bucket is attached to the end of the arm. It's the primary tool for digging and scooping. Buckets come in various sizes and shapes for different applications, such as digging, trenching, or grading.

Quick Coupler: Many modern compact excavators feature a quick coupler at the end of the arm. This is a mechanism that allows the operator to quickly and easily switch between different attachments without leaving the cab.

Versatility through Attachments

One of the key reasons for the popularity of compact excavators is their versatility. The machine itself is a power source for a wide range of hydraulic attachments that can turn it into a multi-purpose tool.

Auger: An auger is used for drilling holes in the ground for fence posts, trees, or foundations.

Hydraulic Breaker: This is a powerful hammer used for breaking concrete, asphalt, or rock.

Grapple: A grapple is a claw-like attachment used for lifting and moving irregularly shaped objects like rocks, tree limbs, or demolition debris.

Thumb: A hydraulic thumb is a hinged attachment that works in conjunction with the bucket, allowing the operator to grab and move objects with precision.

By understanding the key components of a compact excavator, you can appreciate the intricate engineering that allows these small machines to perform such a wide range of tasks with power, precision, and efficiency.
